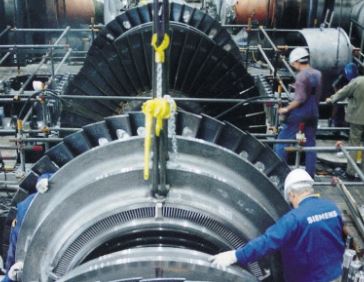

Stages of Turbine in Power Plant The turbine has one single flow High Pressure turbine, one double flow Intermediate Pressure, and one double flow Low Pressure turbine. HP: High-Pressure Turbine IP: Intermediate Pressure Turbine LP: Low-Pressure Turbine High-Pressure Turbine: The construction of High Pressure turbine is barrel type. This avoids mass accumulation due to the absence …
What is a Turbine: A Turbine is a rotary mechanical device the energy gets from fluid flow and converts it into useful work. Turbines are used in thermal energy generation, jet engines, large machines, space shuttle engines etc. The work produced by the turbine can be used for generating the electric power when combined with …
Applications of Gas Turbine Plant: 1. Power Generation: There are three types of gas turbine based on the power utilization and size, this is used to generate the power. Small Sized Gas Turbine. Middle Sized Gas Turbine. Large Sized Gas Turbine.
The difference between the open cycle gas turbine plant and closed cycle gas turbine plant.The main difference between the open cycle and closed cycle gas turbine is in Open cycle working fluid is continuously replaced whereas fluid is used again & again in a closed cycle gas turbine.The more details about comparison between Open Cycle & Closed …
Difference between the open cycle gas turbine and closed cycle gas turbine plant Read More »
Advantages of surface condenser over jet condenser There is a high vacuum obtained compared to the jet. Water used for cooling is reused without any treatment. For high capacity plants, it is More advantageous. In this Condensate losses can be eliminated. It required power for air pump is low.
Different types of steam condensers: Types of steam condensers 1.Jet Condensers 2.Surface condensers Jet Condensers: Jet condensers are mixed type condensers, in this type the steam gets cooled by getting directly with cold water. In this condenser, the temperature of cooling water which is leaving from the condenser is equal to the temperature of condensate. …

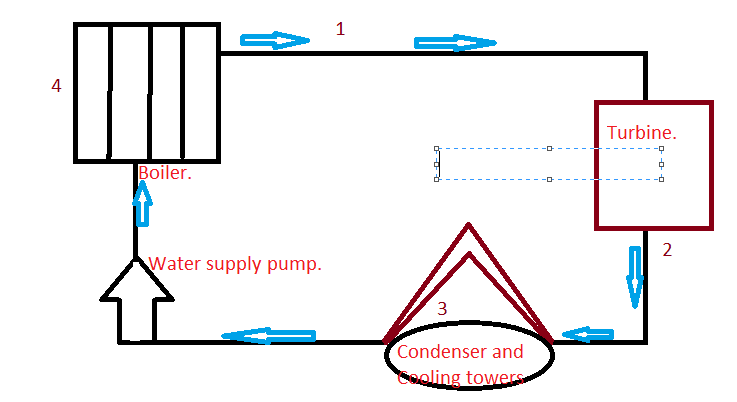

Elements of Condensing Plant: 1. Condenser. 2. Air extraction pump. 3. Condensation extraction pump. 4. Circulating pump. 5. Cooling tower. 1) Condenser: This is used for condensing the hot exhaust steam. It steam flows in different types according to the requirement parallel or counterflow. 2) Air extraction pump: This is …
Difference between Impulse turbine and Reaction Turbine What is Impulse turbine? Impulse turbine works on the principle of impulse. In impulse turbine the drop in pressure of steam takes place only in nozzle and not in moving blades. this is obtained by making the blade passage of transformation takes place only in nozzle and rotor …
Difference between Impulse turbine and Reaction turbine Read More »
Rankine Cycle: Rankine Cycle is known as the thermodynamic cycle for the steam power plant. In this Cycle, the steam in the turbine is superheated and condensing it in condenser due to removing the limitations which are in the Carnot cycle. In this, the actual power cycle is obtained by the theoretical process. At evaporation …
Vapour Compression system: Vapour Compression System consist of Compressor, Condenser, Receiver, Expansion valve and Evaporator. In this type of system it consist of four processes. Compression process [1-2] Condensation process [2-3] Expansion Process [3-4] Evaporation process [4-1]
